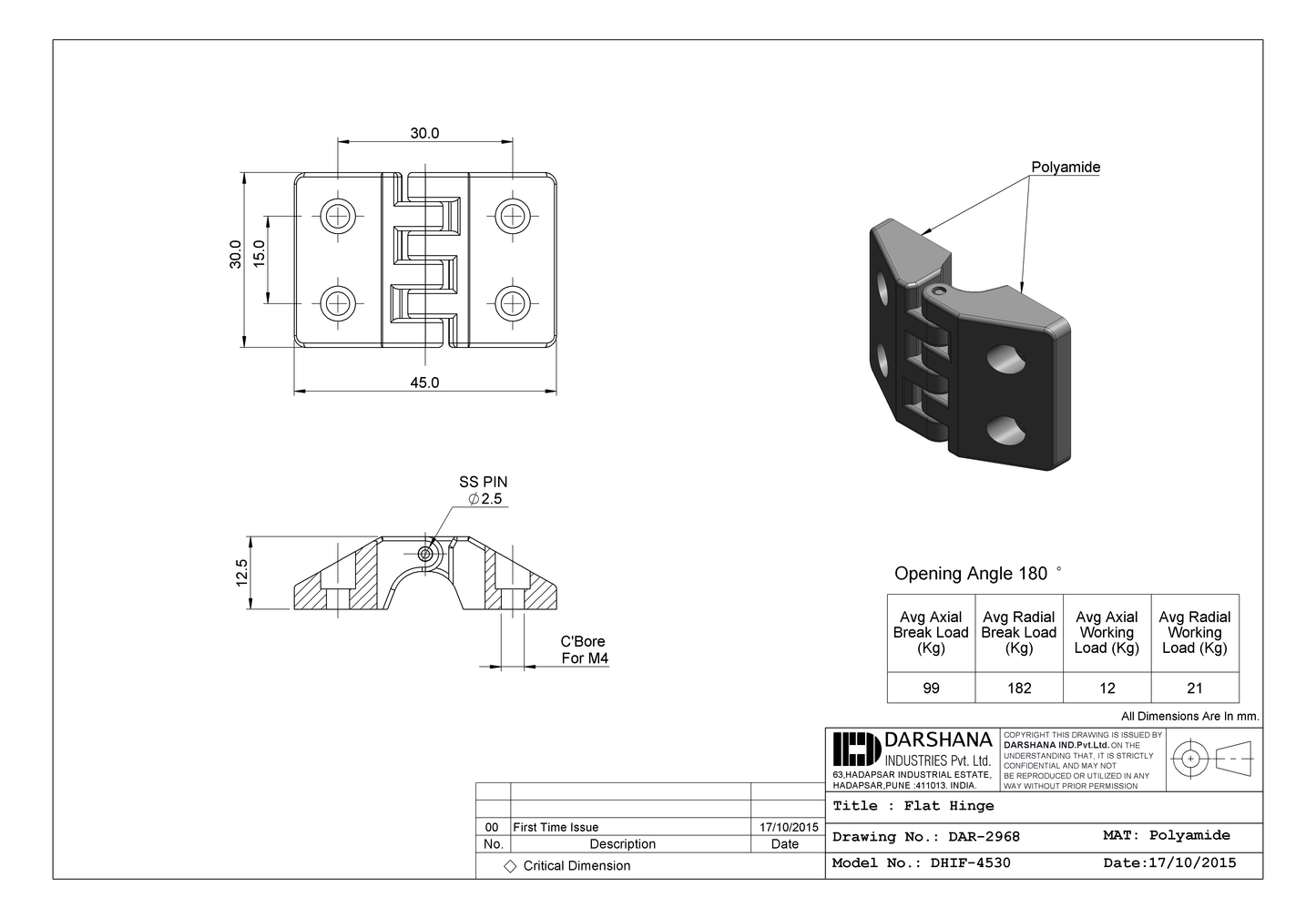

FLAT HINGE DHIF-4530

Hinge Material: Polyamide.
Mounting Type: Hole & Hole.
Opening Angle: 180°.
Hole Size: C'BORE M4.
Avg Axial Break Load (Kg): 99.
Avg Radial Break Load (Kg): 182.
Avg Radial Working Load (Kg): 12.
Avg Radial Working Load (Kg): 21.
S.S.Pin.
