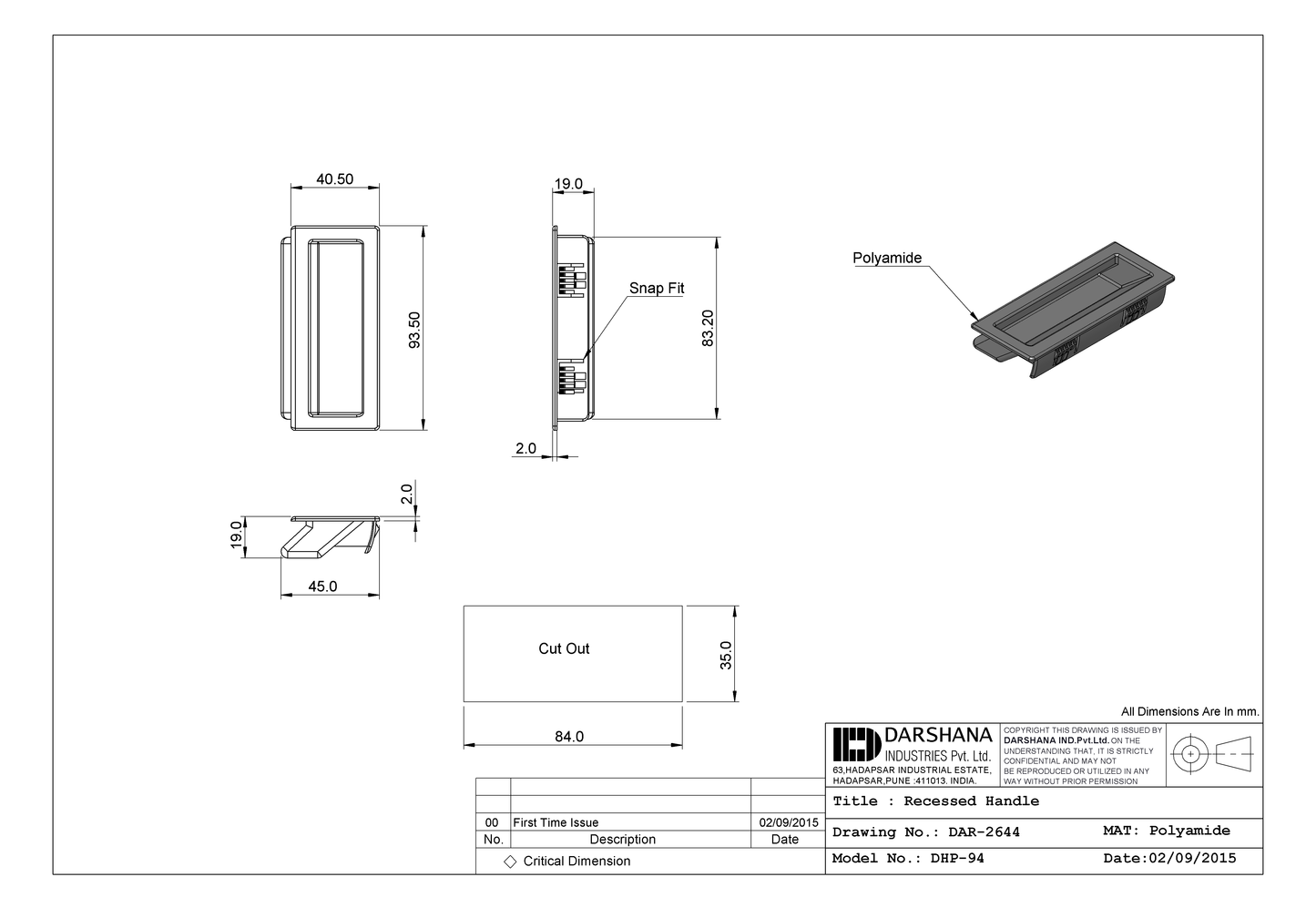

POCKET HANDLE DHP-94

Operating Type: Recessed.
Mounting Type: Snap Fit.
Material Type: Polyamide.
Handle Length & Width: 93.5 & 40.5mm.
Cut out - 84 x 35mm - Changes as per sheet thickness.
Maximum sheet thickness: 3.0mm.
